JBL TUNE710BT

1

quick

start

guide

WHAT’S

IN THE

BOX

power

on &

connect

Settings

Bluetooth

HOLD (2S)

Bluetooth

DEVICES

Connected

JBL TUNE710BT

Now Discoverable

Choose "JBL TUNE710BT" to connect

* To enter pairing mode again, power off and then hold for 5 seconds.

Multi-point connection

Bluetooth

JBL TUNE710BT

press × 2

(Maximum 2 devices)

press × 1

press × 2

HOLD (2S)

BUTTON COMMAND

BIXBY/SIRI^®/OTHERS

Wired listening mode

Charging

2HR

5MIN

3HR

FACTORY RESET

HOLD (5S)

led behaviors

BT CONNECTING

Low battery

CHARGING

BT connected

BT NOT connected

RESET

FULLY CHARGED

Model:

TUNE710BT

Driver size:

40 mm/ 1.6”Dynamic Driver

5 V 1 A

Power supply:

TECH

Weight:

220 g/ 0.485 lbs

Headset battery type:

Charging time:

Polymer Li-ion battery (690 mAh/ 3.7 V)

< 2 hrs from empty

up to 50 hrs

Music play time with BT on:

SPEC

Frequency response:

20 Hz - 20 kHz

Impedance:

32 ohm

Sensitivity passive mode:

Sensitivity active mode:

Maximum SPL:

104 dB SPL@1 kHz

103 dB SPL@1 kHz

93 dB

Microphone sensitivity:

Bluetooth version:

-40 dBV/Pa @1 kHz

5.0

Bluetooth proﬁle version:

Bluetooth transmitter frequency range:

Bluetooth transmitter power:

Bluetooth transmitter modulation:

Maximum operation temperature:

A2DP V1.3, AVRCP V1.6, HFP V1.7

2.4 GHz - 2.4835 GHz

< 10 dBm

GFSK, π/4 DQPSK , 8DPSK

45 °C

VIEW FULL SCREEN PDF USER MANUAL

(No Ratings Yet)

JBL Instructions & User Manuals

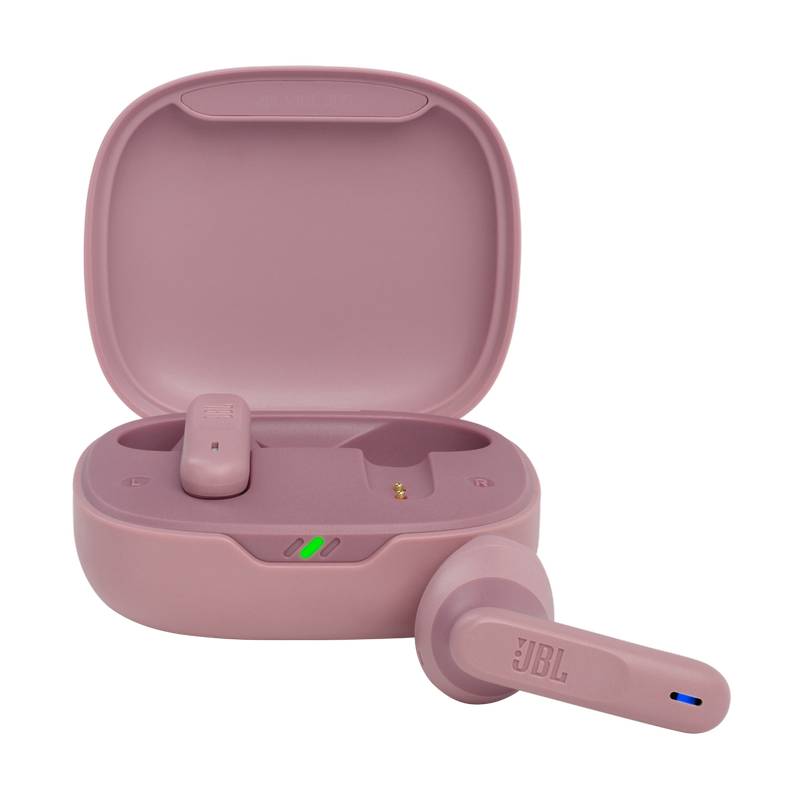

JBL Vibe 300TWS Earbuds

JBL Vibe 200TWS Earbuds

JBL Tune Flex Earbuds

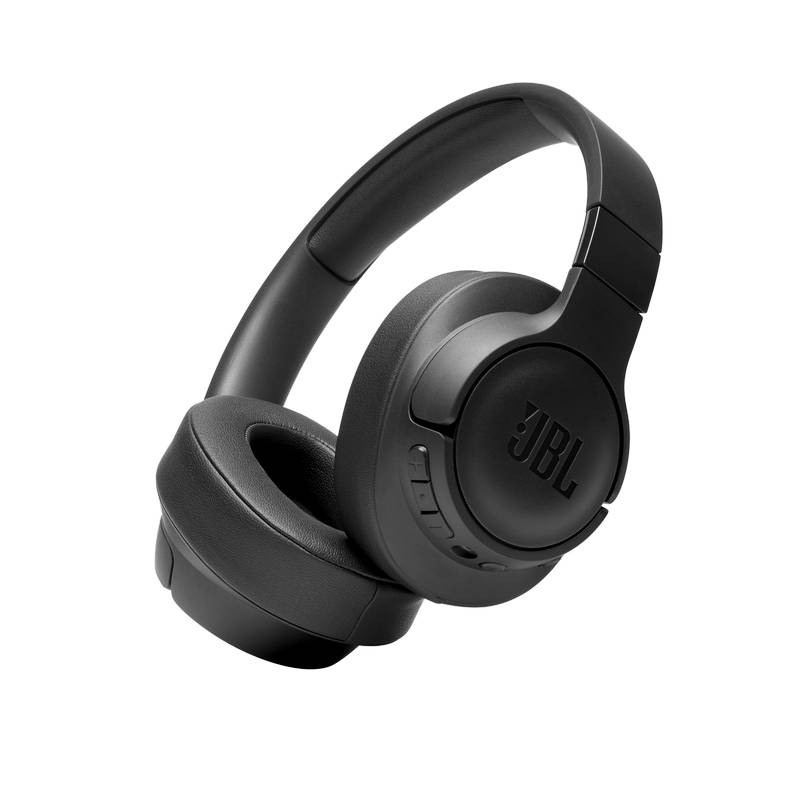

JBL Tune 760NC Headphones
