HE-R10

Topology

Diaphragm

Owner’s Guide

VIEW FULL SCREEN PDF USER MANUAL

(No Ratings Yet)

Loading...

• ALL HEADPHONE INSTRUCTIONS & USER MANUALS
• Hifiman

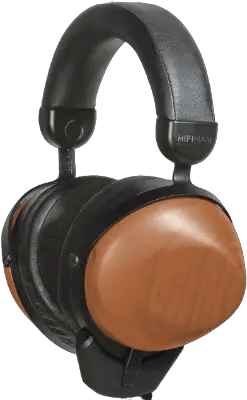

HIFIMAN HE-R10 Headphones Overview

Type: Over-ear
Form factor: Closed-back
Connection type: Wired
Driver size: 50 mm
Frequency response: 15 – 30,000 Hz
Impedance: 32 Ω
Sensitivity: 98 dB
Weight: 350 g
Colour: Black
Brand: HIFIMAN
Model: HE-R10
Low Latency Mode: Yes
Detachable cable: Yes

Summary of Contents

• Page 1: He-r10 Topology Diaphragm Owners Guide
• Page 2: What's New On He-r10 Dynamic Version? Established In 2007, Hfiman Continues To Grow And Innovate Within The World Of Audiophile-grade Portable Products. Hifiman Focused On Developing A Groundbreaking Design For Dynamic Drivers, Resulting In The He-r10 Closed-back Dynamic Headphone. The Application Of Nano Scale Particles To The Upscaled Topology Driver Allowed Hifiman To Exert Greater Control Over Diaphragm Distortions, Resulting In Significantly Improved Clarity.
• Page 3: Message From The Founder Hifiman Topology Diaphragm Technology Luxury, Inside And Out. Solid Wood Ear Cups: Closed Yet Open Tranquility Pads
• Page 4: He-r10 Owners Guide Thank You For Your Purchase Of The He-r10 Headphone. We Take Great Pride In Offering Audio Products That Provide Best-in-class Performance And Value. The Company Continues To Grow At A Rapid Pace, And Im Proud To Say That The Hifiman Brand Is One Of The Most Respected In The Industry. My Passion For Music And Creating Products That Help Recreate The Experience Of A Live Performance Has Not Changed. I Hope You Will Find This Guide Useful In Learning About The New He-r10.
• Page 5: Page 5
• Page 6: He-r10 Owners Guide Topology Diaphragm Is The Name Used To Describe The Technology First Developed For Our In-ear Monitors. It Is Made By Applying Nano Scale Particles To The Diaphragm In Layers Of Assorted Shapes And Patterns. The Inspiration For The Topological Diaphragm Originated From Dr. Fangs Phd Research. The Result Was A Range Of Dynamic Iem Drivers, But The He-r10 Dynamic Version Marks The First Time The Technology Is Applied On A Comparatively Large-scale Driver.
• Page 7: He-r10 Owners Guide Luxury, Inside And Out The Exterior Of The Headband Is Made Of All-natural Lambskin, A Material Famous For Being Both Soft And Luxurious. The Inside Is High-grade Memory Foam, Selected To Achieve The Most Comfortable Fit And Elasticity. The Headband Skeleton Itself Is Made Of Solid Steel. The Structure Is Both Lightweight And Strong, Robust Yet Delicate, And Designed To Convey Detail And Musicality That Is Unmatched In The Market.
• Page 8: He-r10 Owners Guide Solid Wood Ear Cups: The Large Internal Space Of The Headphone Cups Brings Huge Relative Spatial Volume And Necessary Breathing Space To The Powerful Driver Inside. The He-r10 Offers The Best Attributes Of Closed And Open-back Headphones In A Single Model. The Cnc Carving Creates A Work Of Art, Marrying Wood And Aviation-grade Aluminum In Graceful Elegance And Simple Style.
• Page 9: The 'tranquility' Ear Pads Feature High Quality Leather On The Outside, Which Uses A Ring-shaped Inner Surface To Absorb Sound And Prevent Sound Leakage. This Design Forces The Sound To Target The Listeners Ear. The Contact Edge Is Constructed Of Highly Permeable Material To Ensure Optimal Head Comfort. The Outcome Of This Advanced Engineering Is A Transparent, Coherent, And Wide Soundstage, And Maximum Comfort.
• Page 10: The Cable Features A Newly Designed, Single-crystal, Copper Silver-plated Structure. The Combination Of A High Number Of Strands And Ratio Of The Various Ingredients Ensure Low Signal Loss. The Rugged 3.5mm Socket Offers Solid Contact Resistance For Always-reliable Signal Transmission. Three Different Cable Options Are Included Inbox: 3.5mm, 6.35mm, And Balanced Xlr. These Options Ensure Compatibility With A Wide Variety Of Audio Sources, Amplifiers, And Professional Audio Equipment.
• Page 11: He-r10 Owners Guide Frequency Response Range: 15-35khz Impedance: 60ω Sensitivity: 103db Net Weight: 355g Package Contents: Pair Of Headphone X1, Four-pin Xlr Balanced Headphone Cable (3m) X 1, 6.35mm Plug Headphone Cable (3m) X 1, 3.5mm Plug Headphone Cable (1.5m) X 1, Ear Pads (installed On The Headset) X 1 Pair
• Page 12: Headband Adjustment Can Be Made Using The Two Adjustment Blocks For A Better Fit. Hifiman Headphones Benefit From A Break-in Period Of Up To 150 Hours For Optimum Performance. Wipe Surfaces With A Microfiber Cloth And Store Headphones In A Dry, Cool Place Away From Dust And Pets. Avoid Exposing Headphones To Extreme Temperatures And Do Not Use Them While Driving Or Operating Machinery. Replace Ear Pads By Carefully Pulling Them From The Edge Away From The Cup Housing, As They Are Attached With Velcro.
• Page 13: He-r10 Owners Guide Your Product Is Warrantied For A Period Of One Year Beginning With The Original Date Of Purchase. If You Join Hifiman On Facebook, Your Product Warranty Will Be Extended For An Additional Six Months. The Dated Sales Or Delivery Receipt Is Your Proof Of Purchase. The Warranty Applies To The First Purchaser And Is Not Transferable. This Limited Warranty Does Not Apply To Damages Caused By Misuse, Accidents, Or Unauthorized Repairs.
